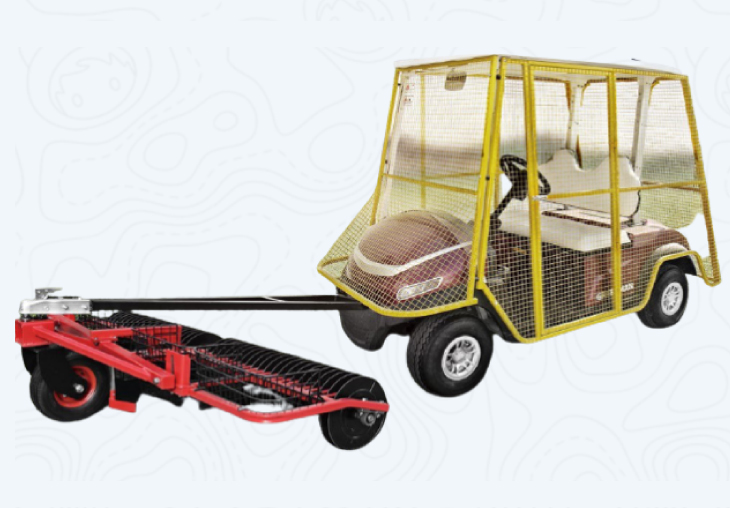

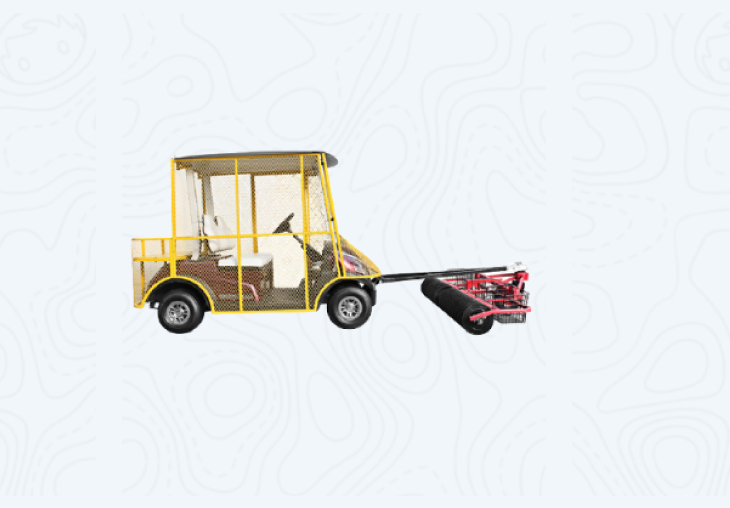

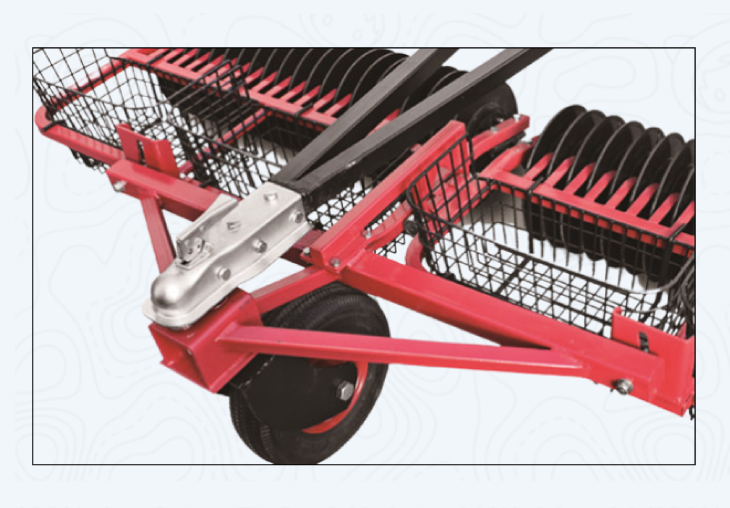

Golf cart with a ball picker + safety cage is a trouble-free ball collector for a golf course.

Drive MotorKDS(ADC), DC 48V/3.7 KW
BatteryEazy Power- 6 x 8V /170AH @ 20HR rate (Advanced GEL technology maintenance free battery with 2 years warranty & 5+ years life span)
Controller Curtis1266A, 48V/275A
Maximum Speed Forward : 22km/h; Reverse: 9km/h
Grade Ability10%
Turning Radius ≤3m
Ball load capacity1200
Overall Dimension 2795×1245×1950 (mm)
Weight 450kg (Battery include)
Wheelbase 1650 mm
Track width Front: 870mm; Rear: 985mm
Suspension Front suspension: Macpherson independent suspension Rear suspension: Rear suspension: Multi-leaf spring and telescopic hydraulic shock absorber
Brakes Rear-wheel mechanical drum brake & Electromagnetic excitation brake & Electric parking
Frame High strength aluminium alloy chassis
Tire 18×8.5-8 (4ply)
